The Advanced DNS Settings / DNS Manager page in BizControl is a tool that visualizes all your domain's DNS records and allows for additions or modifications to your current list of DNS records. The majority of users will never need to edit or even view the DNS records. Use the tool only if you need to create new custom DNS records, redirect existing DNS records to third-party destinations, or modify existing mail exchanger (MX) records to point them to a third-party email service provider.
You can use the Advanced DNS Settings tool only if your domain name points to our name servers. If not, contact your name server provider for assistance with any DNS record changes.
This article contains the following sections:
- View current DNS records
- DNS Record Types and Usage Explained
- Add new DNS records
- Edit existing DNS records
I. View current DNS records:
1. Navigate to BizControl (click here for instructions).

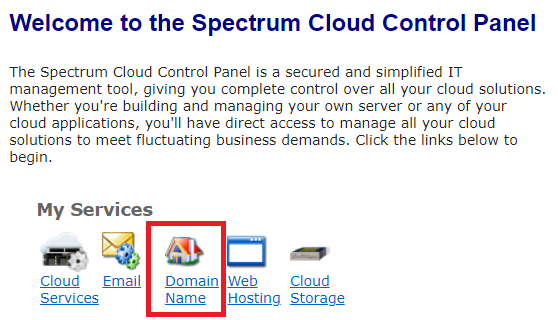

2. Click on the Domain Name link visible on the Home page.

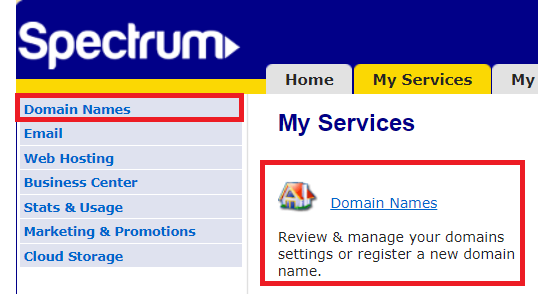

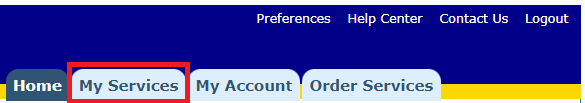

2.1. Alternatively, click on My Services at the top of the Home Page.
and select the Domain Names icon, or click on the Domain Names menu (located on the left side).

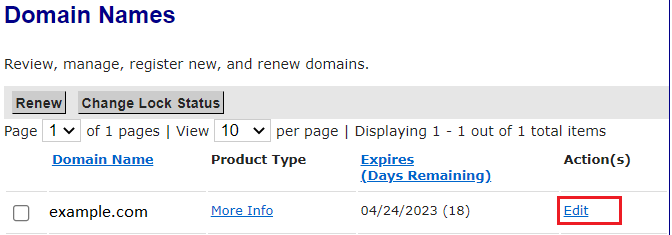

3. The Domain Names page will show a list of your active domain names. Click Edit right next to the domain name you want to view the DNS records.
Note: Click on Edit DNS directly if the option is available.
4. At the bottom of the domain Summary page, click Advanced DNS Settings.
The sample below shows our default DNS records of a domain name pointed to Web Hosting, MySQL database, Business Email services and the default Name Servers DNS records:
II. DNS Record Types and Usage Explained:
1. Type A (Address Mapping) records, marked in blue color in the sample above, specify the IP address (IPv4) of your Web Hosting Services (three A records are related to the mail services on the screenshot above).
Please note that you have your own hosting IP address, different from the one shown in the sample.
2. Type CNAME (Canonical Name) record, marked in brown color in the sample above, is a type of DNS record that maps an alias name to a true or canonical domain name. It can be used to alias the domain name with your MySQL database server or for Autodiscover records for example.
3. Type MX (Mail exchanger) record, marked in red color, specifies your mail exchange server, and it is responsible for your Email Services. Typically, there is more than one MX record and each of them has a priority value. A lower priority number indicates a higher priority MX record.
4. Type Name Server (NS) record, marked in green color, specifies the authoritative name servers for your domain name.
Important Note: Changing the default adns.cs.siteprotect.com and bdns.cs.siteprotect.com name server (NS) records in your DNS zone file will NOT change the authoritative name servers of your domain name. For instructions on how to change authoritative name servers of a domain name registered with us, see the How do I change my nameservers? article.
III. Add new DNS records:
1. Follow the instructions in Section I: View current DNS records of this article to access the DNS Manager tool. If you have multiple domain names under your account, make sure to select the correct one using the Edit DNS Zone for drop-down menu.

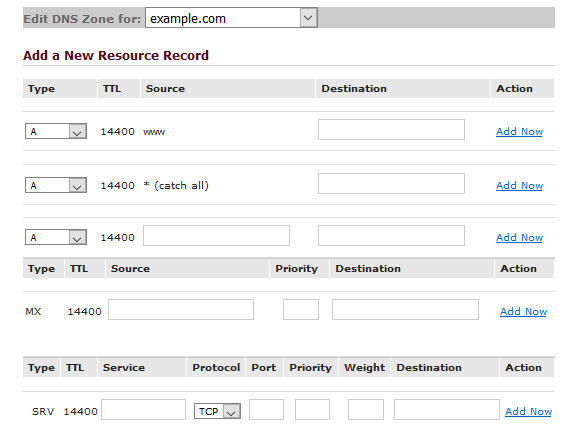

2. Use the drop-down menu of the Add a New Resource Record section and select the type of the record you wish to add: A, CNAME, NS, TXT or SPF. If you need to add an MX record, then use the pre-selected field that has a Type - MX.
3. In the Source field, enter the name of the record (e.g.: example.com, www.example.com, ftp.example.com, mail.example.com, imap.example.com).
Note: The “@” symbol is not accepted by our tool as a valid source. Thus, make sure to replace it with the actual domain name (e.g.: example.com)
4. In the Destination field, enter the location to which the new record will point:
a. If you selected type A, then the destination must be an IP address.
b. If you selected type CNAME, then the destination must point to a domain name or hostname.
c. If you selected type MX, then the destination must point to the hostname of the email service provider.
d. If you selected type TXT, then the destination value can be free-form text data of any type.
Note: The following records should be added as TXT record type in order to use our SPF records listed below:
Our Business Email SPF value is "v=spf1 include:mfg.siteprotect.com ~all"
Hosted Exchange 2016 SPF value is "v=spf1 include:spf.serverdata.net ~all"
Our universal Business Email & Hosted Exchange 2016 SPF value is:
"v=spf1 include:mfg.siteprotect.com include:spf.serverdata.net ~all"
e. If you selected type SPF, the destination must contain a properly configured SPF record value starting with “v=spf1”.
5. Finally, click Add Now.
IV. Edit existing DNS records:
Keep in mind that there is a propagation time when DNS changes are made. Typically, the propagation time takes a few minutes for DNS changes to update across the Internet's DNS system, however it can occasionally take longer (4-6 hours) for a change to take effect.
1. Follow the instructions in Section I: View current DNS records of this article to access the DNS Manager tool. If you have multiple domain names under your account, make sure to select the correct one using the Edit DNS Zone for drop-down menu.
2. In the Current Resource Record(s) section, you can choose to change the name of either the Source or the Destination of an existing record.
3. Click the Update button next to the appropriate Destination field.
Note: Before you update an existing DNS record, it is recommended to lower the Time To Live (TTL) value to 300 seconds (5 minutes). This way the DNS propagation time will be shorter.
4. If you need to delete a record, click Delete next to the appropriate Destination field.
